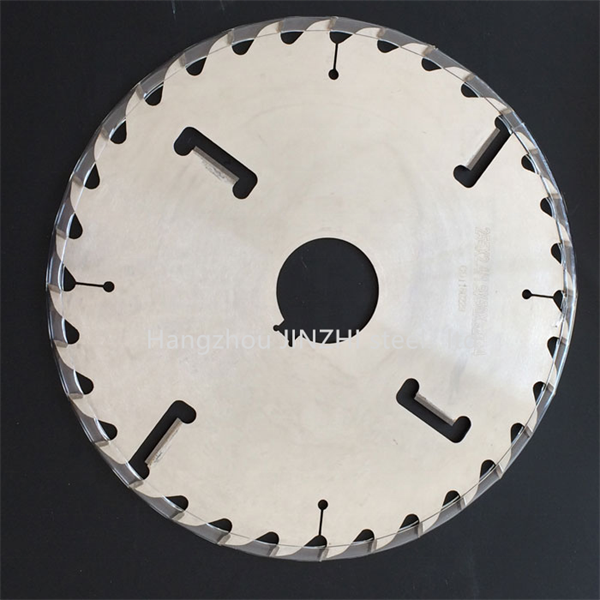

Thin-Kerf Multi-Rip Circular Saw Blades

Blade Thickness:0.06
Arbor Size:customize
Teeth per Inch:customize
Teeths:48
Blade Length:CUSTOM
Blade Diameter:12in or customize
Edge Height:0.315in(8mm)
Process Type:Cold PRESS
Customized support:OEM

Specification:

Blade Thickness:0.06

Arbor Size:customize

Teeth per Inch:customize

Teeths:48

Blade Length:CUSTOM

Blade Diameter:12in or customize

Edge Height:0.315in(8mm)

Process Type:Cold PRESS

Customized support:OEM

Finishing:Ti-coated

Size:150*1.8/1.3*40*24T*2T

Blade Material:Tungsten Carbide Steel

Application:Multi blade log/timber saw

Performance:Smooth face

Process:Linear cutting

Advantage:Operator Safety

Saw body material:

75Cr1 from German/SKS51 from Japan

Carbide tip:Luxemburg KCR05/KCR06

Saw body style:with rakers/flat plate

Teeth number:20T/24T/30T/36T/42T/48T

Certification:ISO

Features-benefits

Professional Multix PRO Standard series are equipped with a hard disk which ensures high rigidity in difficult woodworking conditions which are characteristic for high performance multi rip saws

Diameter	Thickness	Body	Inner hole	Tooth	Raker
150	1.6	1.2	40/50	24T	2T/3T
150	1.8	1.3	40/50	24T	2T/3T
150	1.9	1.5	40/50	24T	2T/3T
160	1.6	1.2	40/50	24T	2T/3T
160	1.8	1.3	40/50	24T	2T/3T
160	1.9	1.5	40/50	24T	2T/3T
180	2.0	1.5	40/50	24T	2T/3T
180	2.2	1.7	40/50	24T	2T/3T
200	2.0	1.5	40/50	30T	2T/3T
210	2.0	1.5	40/50	30T	2T/3T
211	2.0	1.5	40/50	30T	2T/3T
212	2.0	1.5	40/50	30T	2T/3T
230	2.0	1.5	40/50	30T	2T/3T
255	2.2	1.7	40/50	32T	3T/4T
280	2.4	1.9	40/50	36T	4T
305	2.4	1.9	40/50	36T	4T
320	2.7	2.1	50/60	36T	4T
355	3.0	2.5	50/60	40T	4T
380	3.2	2.5	50/60	40T	4T
405	3.4	2.7	50/60	40T	6T
