Hss M51 Material Coil Strip for metal

Name:
M42 Bi-metal Metal Cutting Band Saw BladeBlade Thickness:
0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in
Blade Width:
1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 1/4in
Teeth per Inch:10, 24, all
Blade Length:6in, 6 1/2in, 10in
Blade Diameter:18in, all
Edge Height:0.315in(8mm), 0.472in(12mm)
Process Type:HOT PRESS, Cold PRESS
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Application:Industrial Metal Cutting
Advantage:Long Life
Package:Wooden Case

EMAIL

Production Description


High Cutting Accuracy Coil M42 Bi Metal Band Saw Blade


Two materials, high speed steel (HSS)for the teeth and alloyed tool steel as the backing material ,are joined during the high energy laser welding process. the specially developed backing material ,alloyed with 4% chromium ,R80\B318 band saw blade ,has excellent machanical properties under dynamic loading .this welding process results in an optimal combination of materials with respect to saw blade resistance to wear and fatigue.


Our advantage:

1.We are producing manufacture,so we have price advantage;

2.We have rich production experience,so we can deliver the goods very quickly;

3. Our production equipment from Germany,Italy,U.S.A,we use German technology, so our products high quality;

4.We provide free samples to our clients(except special size) for test,you only need pay the freight(we have cheap courier express).

Pls contact us without hesitate for long and good cooperation.

Welcome to beautiful Hangzhou city!

Why Bi-Metal Blades are the Smarter Choice

  • Enhanced Cutting Action: Equipped with an optimized gullet design that delivers straighter and higher precision cuts.

  • Improved Performance: Bi-Metal blades have hardened edges that deliver faster cutting efficiency and steel-flex bodies that don’t share the breaking tendencies commonly associated with carbon body blades.

  • Greater Blade Life: An exceptional build quality produces less chipping and offers up to 5 to 10 times the wear resistance resulting for long-term durability.

  • Better Heat Resistance: The M42 steel alloy possesses a superior high heat-treated hardness compared to conventional HSS.

  • First Class Versatility: Bi-Metal blades aren't just a one-trick pony. They are ideal for both woodworking and metalworking, and can tolerate higher speed sawing applications and projects.






Band sawblade

material

Width*thickness

(mm)

Width*thickness

(inch )

Number of teeth(T)

Length

M42 BI-metal

13X0.6

1/2x0.025

6T , 14T ,8/12T

100m<per coil<170m

M42 BI-metal

19X0.9

3/4x0.035

3/4T,4/6T,5/8T

100m (+_10m)/coil

M42 BI-metal

27X0.9

1x0.035

4T,2/3T,3/4T,4/6T,5/8T,6/10T,3/4TT,4/6TT,3/4TH

100m (+_10m)/coil

M42 BI-metal

34X1.1

1 1/4x0.042

2/3T,3/4T,4/6T,3/4TT,4/6TT,3/4TH

85m(+_10m) /coil

M42 BI-metal

41X1.27

1 1/2x0.050

2/3T,3/4T,4/6T,3/4TT,4/6TT

75m(+_10m) /coil

M42 BI-metal

54X1.60

2x0.63

1.4/2T,0.75/1.25T,2/3T,3/4T,3/4TT

55m<per coil<110m

M42 BI-metal

67X1.60

2 5/8x0.63

1.4/2T,0.75/1.25T,2/3T

55m<per coil<100m

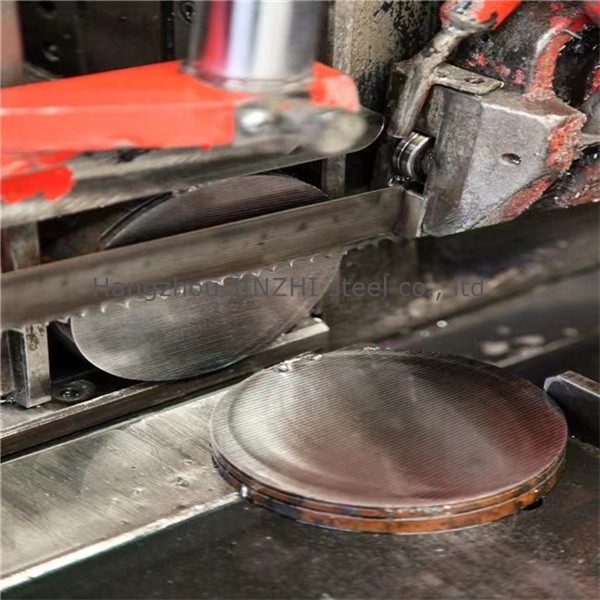

Application



Factory Production


Factory Production.jpg

Quality Insurance



Packing



Packaging


Size

Difference saw blade difference

Weight

According your saw blade size







Packaging Details

1.Wipe the surface clean
2.Into a Plastic bags
3.Into a paper bags
4.Last into cartoon boxes
5.According your request
